UC201CEUC202CEUC203CEUC204CEUC205CEUC206CEUC207CEUC208CEUC209CEUC210CE

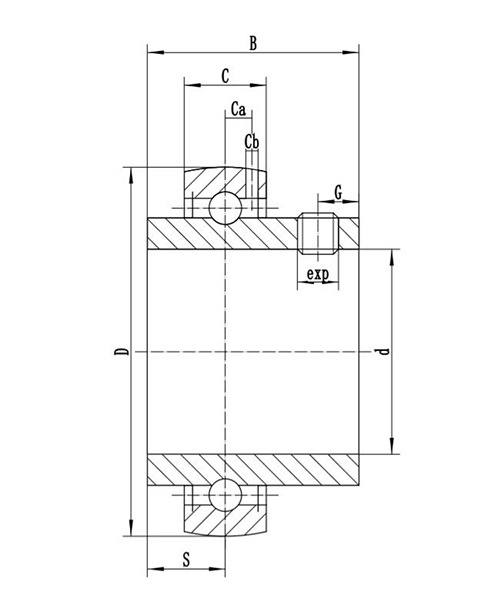

| 型號 | 基本尺寸 (mm) | 重量 | ||||||||
| d | D | B | S | C | r/min | G | ds | ZrO2 | Si3N4 | |
| UC201CE | 12 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 | 0.16 | 0.09 |
| UC202CE | 15 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 | 0.15 | 0.08 |
| UC203CE | 17 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 | 0.14 | 0.07 |
| UC204CE | 20 | 47 | 31 | 12.7 | 17 | 1 | 4.5 | M6 x 1 | 0.12 | 0.07 |
| UC205CE | 25 | 52 | 34.1 | 14.3 | 17 | 1 | 5 | M6 x 1 | 0.17 | 0.09 |
| UC206CE | 30 | 62 | 38.1 | 15.9 | 19 | 1 | 5 | M6 x 1 | 0.27 | 0.14 |
| UC207CE | 35 | 72 | 42.9 | 17.5 | 20 | 1.1 | 6 | M8 x 1 | 0.4 | 0.21 |
| UC208CE | 40 | 80 | 49.2 | 19 | 21 | 1.1 | 8 | M8 x 1 | 0.54 | 0.29 |
| UC209CE | 45 | 85 | 49.2 | 19 | 22 | 1.1 | 8 | M8 x 1 | 0.57 | 0.3 |
| UC210CE | 50 | 90 | 51.6 | 19 | 24 | 1.1 | 9 | M10 x 1 | 0.64 | 0.34 |
| UC211CE | 55 | 100 | 55.6 | 22.2 | 25 | 1.5 | 9 | M10 x 1 | 0.89 | 0.48 |
| UC212CE | 60 | 110 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 | 1.2 | 0.64 |
| UC213CE | 65 | 120 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 | 1.51 | 0.8 |
| UC214CE | 70 | 125 | 74.6 | 30.2 | 29 | 1.5 | 12 | M12 x 1.25 | 1.68 | 0.89 |
| UC215CE | 75 | 130 | 77.8 | 33.3 | 30 | 1.5 | 12 | M12 x 1.25 | 1.86 | 0.99 |
| UC216CE | 80 | 140 | 82.6 | 33.3 | 33 | 2 | 14 | M12 x 1.25 | 2.17 | 1.16 |
| UC217CE | 85 | 150 | 85.7 | 34.1 | 36 | 2 | 14 | M12 x 1.25 | 2.62 | 1.39 |
| UC218CE | 90 | 160 | 96 | 39.7 | 37 | 2 | 14 | M12 x 1.25 | 3.31 | 1.76 |
| UC220CE | 100 | 180 | 108 | 42 | 41 | 2 | 14 | M12 x 1.25 | 3.46 | 1.85 |
