當前位置：Home > 產品中心 > 等截面薄壁球軸承 > 密封薄壁軸承 > 四點球系列X

YDJHA10XL0
YDJHA10XL0
YDJHA15XL0
YDJHA15XL0
YDJHA17XL0
YDJHA17XL0
YDJA020XP0
YDJA020XP0
YDJA025XP0
YDJA025XP0

產品特點

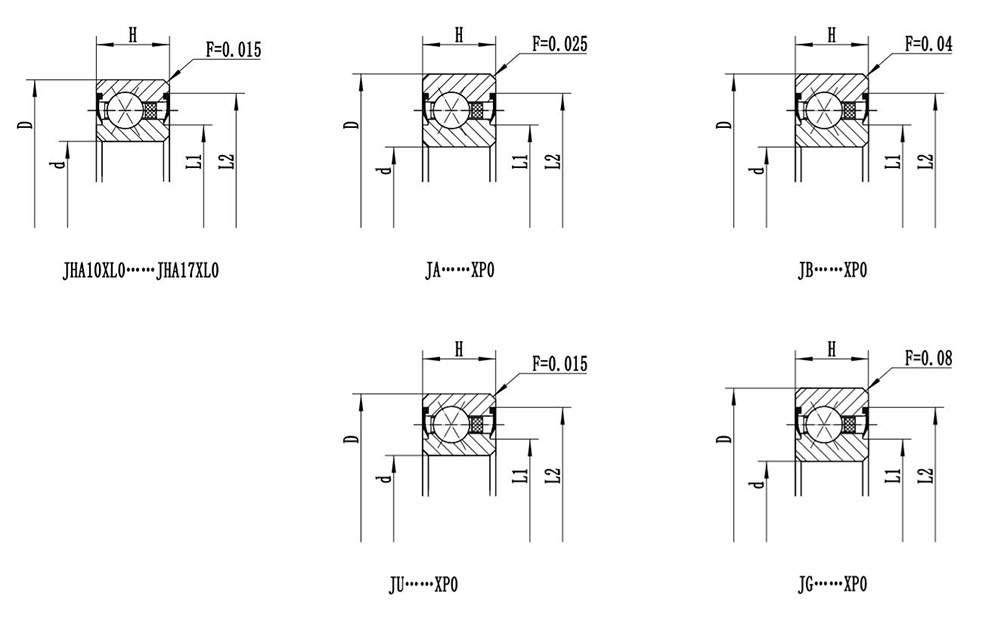

結構圖
規格

密封式薄壁球軸承四點角接觸球結構

型號	互換型號		尺寸 (inch/mm)					載荷.N				重量
型號	互換型號		尺寸 (inch/mm)					徑向		軸向		重量
YDPB	NTN	KAYDON	d	D	H	L1	L2	Cor	Cr	Coa	Ca	Kg
YDJHA10XL0		JHA10XL0	1	1.375	0.1875	1.108	1.274	1290	1100	3250	1650	0.016
YDJHA10XL0		JHA10XL0	25.4	34.925	4.763	28.1	32.4	1290	1100	3250	1650	0.016
YDJHA15XL0		JHA15XL0	1.5	1.875	0.1875	1.608	1.774	1780	1320	4450	2050	0.024
YDJHA15XL0		JHA15XL0	38.1	47.625	4.763	40.8	45.1	1780	1320	4450	2050	0.024
YDJHA17XL0		JHA17XL0	1.75	2.125	0.1875	1.858	2.024	2045	1420	5060	2220	0.027
YDJHA17XL0		JHA17XL0	44.45	53.975	4.763	47.193	51.41	2045	1420	5060	2220	0.027
YDJA020XP0		JA020XP0	2	2.5	0.25	2.148	2.356	3200	2285	7600	3510	0.045
YDJA020XP0		JA020XP0	50.8	63.5	6.35	54.6	59.8	3200	2285	7600	3510	0.045
YDJA025XP0		JA025XP0	2.5	3	0.25	2.648	2.856	3690	2590	9290	4050	0.054
YDJA025XP0		JA025XP0	63.5	76.2	6.35	62.7	72.5	3690	2590	9290	4050	0.054
YDJA030XP0		JA030XP0	3	3.5	0.25	3.148	3.356	4400	2860	10980	4490	0.064
YDJA030XP0		JA030XP0	76.2	88.9	6.35	80	85.2	4400	2860	10980	4490	0.064
YDJA035XP0		JA035XP0	3.5	4	0.25	3.648	3.856	5070	3120	12670	4930	0.077
YDJA035XP0		JA035XP0	88.9	101.6	6.35	92.7	98	5070	3120	12670	4930	0.077
YDJA040XP0		JA040XP0	4	4.5	0.25	4.148	4.356	5730	3360	14310	5380	0.086
YDJA040XP0		JA040XP0	101.6	114.3	6.35	105.4	110.6	5730	3360	14310	5380	0.086
YDJA042XP0		JA042XP0	4.25	4.75	0.25	4.398	4.606	6090	3480	15160	5600	0.091
YDJA042XP0		JA042XP0	107.95	120.65	6.35	111.7	117	6090	3480	15160	5600	0.091
YDJA045XP0		JA045XP0	4.5	5	0.25	4.648	4.856	6400	3600	16000	5820	0.095
YDJA045XP0		JA045XP0	114.3	127	6.35	118	123.3	6400	3600	16000	5820	0.095
YDJA047XP0		JA047XP0	4.75	5.25	0.25	4.898	5.106	6760	3710	16850	6000	0.1
YDJA047XP0		JA047XP0	120.65	133.35	6.35	124.4	129.7	6760	3710	16850	6000	0.1
YDJA050XP0		JA050XP0	5	5.5	0.25	5.148	5.365	7070	3820	17690	6220	0.104
YDJA050XP0		JA050XP0	127	139.7	6.35	130.8	136	7070	3820	17690	6220	0.104
YDJA055XP0		JA055XP0	5.5	6	0.25	5.648	5.856	7780	4030	19380	6580	0.113
YDJA055XP0		JA055XP0	139.7	152.4	6.35	143.46	148.74	7780	4030	19380	6580	0.113
YDJA060XP0		JA060XP0	6	6.5	0.25	6.148	6.356	8440	4240	21070	6980	0.127
YDJA060XP0		JA060XP0	152.4	165.1	6.35	156.16	161.44	8440	4240	21070	6980	0.127
YDJA065XP0		JA065XP0	6.5	7	0.25	6.648	6.856	9110	4450	22760	7330	0.136
YDJA065XP0		JA065XP0	165.1	177.8	6.35	168.86	174.14	9110	4450	22760	7330	0.136
YDJB020XP0		JB020XP0	2	2.625	0.3125	2.136	2.362	4130	3370	10400	5020	0.068
YDJB020XP0		JB020XP0	50.8	66.675	7.938	54.3	60	4130	3370	10400	5020	0.068
YDJB025XP0		JB025XP0	2.5	3.125	0.3125	2.636	2.862	5070	3770	12620	5730	0.086
YDJB025XP0		JB025XP0	63.5	79.375	7.938	67	72.7	5070	3770	12620	5730	0.086
YDJB030XP0		JB030XP0	3	3.625	0.3125	3.136	3.362	5960	4150	14890	6400	0.1
YDJB030XP0		JB030XP0	76.2	92.075	7.938	79.7	85.4	5960	4150	14890	6400	0.1
YDJB035XP0		JB035XP0	3.5	4.125	0.3125	3.636	3.862	6850	4510	17160	7070	0.122
YDJB035XP0		JB035XP0	88.9	104.775	7.938	92.4	98.1	6850	4510	17160	7070	0.122
YDJB040XP0		JB040XP0	4	4.625	0.3125	4.136	4.362	7780	4850	19430	7650	0.136
YDJB040XP0		JB040XP0	101.6	117.475	7.938	105	110.8	7780	4850	19430	7650	0.136
YDJB042XP0		JB042XP0	4.25	4.875	0.3125	4.386	4.662	8130	4980	20310	7910	0.141
YDJB042XP0		JB042XP0	107.95	123.825	7.938	111.4	118.4	8130	4980	20310	7910	0.141
YDJB045XP0		JB045XP0	4.5	5.125	0.3125	4.636	4.862	8670	5180	21690	8220	0.154
YDJB045XP0		JB045XP0	114.3	130.175	7.938	117.8	123.5	8670	5180	21690	8220	0.154
YDJB047XP0		JB047XP0	4.75	5.375	0.3125	4.886	5.162	9020	5300	22580	8450	0.159
YDJB047XP0		JB047XP0	120.65	136.525	7.938	124.1	131.1	9020	5300	22580	8450	0.159
YDJB050XP0		JB050XP0	5	5.625	0.3125	5.136	5.362	9560	5490	23910	8800	0.168
YDJB050XP0		JB050XP0	127	142.875	7.938	130.5	136.2	9560	5490	23910	8800	0.168
YDJB055XP0		JB055XP0	5.5	6.125	0.3125	5.636	5.862	10490	5800	26180	9340	0.181
YDJB055XP0		JB055XP0	139.7	155.575	7.938	143.2	148.9	10490	5800	26180	9340	0.181
YDJB060XP0		JB060XP0	6	6.625	0.3125	6.136	6.362	11380	6100	28450	9870	0.2
YDJB060XP0		JB060XP0	152.4	168.275	7.938	155.9	161.6	11380	6100	28450	9870	0.2
YDJB065XP0		JB065XP0	6.5	7.125	0.3125	6.638	6.862	12270	6380	30720	10400	0.213
YDJB065XP0		JB065XP0	165.1	180.975	7.938	168.6	174.3	12270	6380	30720	10400	0.213
YDJU040XP0		JU040XP0	4	4.75	0.5	4.15	4.547	9340	6300	23380	9820	0.249
YDJU040XP0		JU040XP0	101.6	120.65	12.7	105.4	115.5	9340	6300	23380	9820	0.249
YDJU042XP0		JU042XP0	4.25	5	0.5	4.4	4.797	9870	6500	24710	10180	0.263
YDJU042XP0		JU042XP0	107.95	127	12.7	111.76	121.8	9870	6500	24710	10180	0.263
YDJU045XP0		JU045XP0	4.5	5.25	0.5	4.65	5.047	10400	6710	26050	10580	0.277
YDJU045XP0		JU045XP0	114.3	133.35	12.7	118.1	128.2	10400	6710	26050	10580	0.277
YDJU047XP0		JU047XP0	4.75	5.5	0.5	4.9	5.295	10940	6920	27380	10940	0.295
YDJU047XP0		JU047XP0	120.65	139.7	9.525	124.5	134.5	10940	6920	27380	10940	0.295
YDJU050XP0		JU050XP0	5	5.75	0.5	5.15	5.545	11510	7110	28720	11290	0.308
YDJU050XP0		JU050XP0	127	146.05	12.7	130.8	140.8	11510	7110	28720	11290	0.308
YDJU055XP0		JU055XP0	5.5	6.25	0.5	5.56	6.042	12580	7500	31380	11960	0.336
YDJU055XP0		JU055XP0	139.7	158.75	12.7	143.5	153.5	12580	7500	31380	11960	0.336
YDJU060XP0		JU060XP0	6	6.75	0.5	6.15	6.542	13650	7870	34050	12620	0.367
YDJU060XP0		JU060XP0	152.4	171.45	9.525	156.2	166.2	13650	7870	34050	12620	0.367
YDJU065XP0		JU065XP0	6.5	7.25	0.5	6.65	7.037	14710	8230	36760	13290	0.395
YDJU065XP0		JU065XP0	165.1	184.15	12.7	168.9	178.7	14710	8230	36760	13290	0.395
YDJU070XP0		JU070XP0	7	7.75	0.5	7.15	7.537	15780	8580	39430	13910	0.422
YDJU070XP0		JU070XP0	177.8	196.85	9.525	181.6	191.4	15780	8580	39430	13910	0.422
YDJU075XP0		JU075XP0	7.5	8.25	0.5	7.65	8.037	16850	8920	42090	14540	0.449
YDJU075XP0		JU075XP0	190.5	209.55	12.7	194.3	204.1	16850	8920	42090	14540	0.449
YDJU080XP0		JU080XP0	8	8.75	0.5	8.15	8.537	17910	9250	44760	15160	0.481
YDJU080XP0		JU080XP0	203.2	222.25	12.7	207	216.8	17910	9250	44760	15160	0.481
YDJU090XP0		JU090XP0	9	9.75	0.5	9.15	9.535	20050	9890	50100	16310	0.535
YDJU090XP0		JU090XP0	228.6	247.65	12.7	232.4	242.2	20050	9890	50100	16310	0.535
YDJU100XP0		JU100XP0	10	10.75	0.5	10.15	10.535	22180	10500	55430	17470	0.594
YDJU100XP0		JU100XP0	254	273.05	12.7	257.8	267.6	22180	10500	55430	17470	0.594
YDJU110XP0		JU110XP0	11	11.75	0.5	11.15	11.535	24310	11090	60810	18580	0.649
YDJU110XP0		JU110XP0	279.4	298.45	12.7	283.2	293	24310	11090	60810	18580	0.649
YDJU120XP0		JU120XP0	12	12.75	0.5	12.15	12.535	26450	11650	66140	19650	0.708
YDJU120XP0		JU120XP0	304.8	323.85	12.7	308.6	318.4	26450	11650	66140	19650	0.708
YDJG70XP0		JG070XP0	7	9	1	7.554	8.602	58360	45370	145930	68450	2.63
YDJG70XP0		JG070XP0	177.8	228.6	25.4	191.8716	218.4908	58360	45370	145930	68450	2.63
YDJG75XP0		JG075XP0	7.5	9.5	1	8.054	9.102	60810	46270	152020	70320	2.77
YDJG75XP0		JG075XP0	190.5	241.3	25.4	204.5716	231.1908	60810	46270	152020	70320	2.77
YDJG80XP0		JG080XP0	8	10	1	8.554	9.602	65650	48370	164200	74010	2.95
YDJG80XP0		JG080XP0	203.2	254	25.4	217.2716	243.8908	65650	48370	164200	74010	2.95
YDJG90XP0		JG090XP0	9	11	1	9.554	10.602	72990	51230	182420	79430	3.27
YDJG90XP0		JG090XP0	228.6	279.4	25.4	242.6716	269.2908	72990	51230	182420	79430	3.27
YDJG100XP0		JG100XP0	10	12	1	10.554	11.602	80230	53990	200650	84630	3.58
YDJG100XP0		JG100XP0	254	304.8	25.4	268.0716	294.6908	80230	53990	200650	84630	3.58
YDJG110XP0		JG110XP0	11	13	1	11.554	12.602	87570	56620	218920	89700	3.9
YDJG110XP0		JG110XP0	279.4	330.2	25.4	293.4716	320.0908	87570	56620	218920	89700	3.9
YDJG120XP0		JG120XP0	12	14	1	12.554	13.602	94860	59180	237140	94590	4.218
YDJG120XP0		JG120XP0	304.8	355.6	25.4	318.9	345.5	94860	59180	237140	94590	4.218
YDJG140XP0		JG140XP0	14	16	1	14.554	15.602	109440	64030	273630	104060	4.899
YDJG140XP0		JG140XP0	355.6	406.4	25.4	369.7	396.3	109440	64030	273630	104060	4.899
YDJG160XP0		JG160XP0	16	18	1	16.554	17.602	124060	68560	310130	113130	5.579
YDJG160XP0		JG160XP0	406.4	457.2	25.4	420.5	447.1	124060	68560	310130	113130	5.579
YDJG180XP0		JG180XP0	18	20	1	18.554	19.602	138640	72840	346620	121840	6.214
YDJG180XP0		JG180XP0	457.2	508	25.4	471.3	497.9	138640	72840	346620	121840	6.214
YDJG200XP0		JG200XP0	20	22	1	20.554	21.602	153220	76870	383070	130240	7.167
YDJG200XP0		JG200XP0	508	558.8	25.4	522.1	548.7	153220	76870	383070	130240	7.167
YDJG220XP0		JG220XP0	22	24	1	22.554	23.602	37750	18152	94390	31130	7.62
YDJG220XP0		JG220XP0	558.8	609.6	25.4	572.87	599.49	37750	18152	94390	31130	7.62
YDJG250XP0		JG250XP0	25	27	1	25.554	26.602	42680	19360	106700	33780	8.85
YDJG250XP0		JG250XP0	635	685.8	25.4	649.07	675.69	42680	19360	106700	33780	8.85
YDJG300XP0		JG300XP0	30	32	1	30.554	31.602	50890	21200	127200	37980	10.57
YDJG300XP0		JG300XP0	762	812.8	25.4	776.07	802.69	50890	21200	127200	37980	10.57
YDJG350XP0		JG350XP0	35	37	1	35.554	36.602	59100	22845	147700	41970	12.29
YDJG350XP0		JG350XP0	889	939.8	25.4	903.07	929.69	59100	22845	147700	41970	12.29
YDJG400XP0		JG400XP0	40	42	1	40.554	41.602	63310	24332	168300	45770	13.97
YDJG400XP0		JG400XP0	1016	1066.8	25.4	1030.07	1056.69	63310	24332	168300	45770	13.97
